NEW MODEL NOW OUT
(Cream in colour)
The new UV Ultra-Vacuum is
now available at an incredibly low price. This unit is great for exposing screens, polymer plates, glass etching
stencils, pcb's , Alternative Photography, Solar Plates, Solarplate
Etching, Photopolymer Film, Water Washable Plates etc.

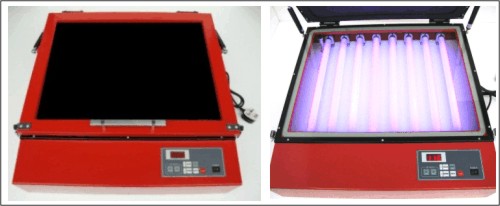

The new colour of this unit is Orange - design is identical to that
featured in the above video.
Features:
-
Heavy duty neoprene
vacuum blanket
-
2 x Heavy duty struts for
easy lifting of lid
-
Adjustable vacuum lid
clamps
-
Strong tempered glass
surface
-
Oil-free vacuum pump which
is powerful and quieter
Technical details:
-
Overall dimensions: 700mm
(L) x 700mm (W) x 180mm (H)
-
Maximum exposure area for
Plates is: 560
x 440mm
-
Maximum exposure area for
Screen frame size is 540mm x 440mm x 20mm thick (Outside dimensions))
-
Maximum screen frame size
520x420 Outside dimensions
-
UV Lamps: 8 x 25W
-
Timer: Digital
Specifications liable to change without prior notice.

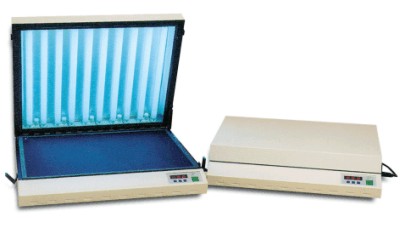

The fully
automatic AY Vacuum range of exposure units offer the ultimate in contact
between the artwork and the substrate. These are essential for fine detail
work and also for larger than A4 size when a pressure pad design would not
offer an even contact.
For the ultimate in reproduction definition, a vacuum unit has to be the
choice. Unlike the pressure pad units the AY series use a vacuum to ensure
the artwork and material to be exposed are held in perfect contact.
When fine tracks are required
on a PCB or detailed definition on a graphic reproduction, an AY vacuum
unit should be chosen. All the AY units now feature the latest rubber
blanket and glass vacuum system for the ultimate exposure resolution.
The time is then set via the touch membrane control panel and the start
button pressed. This activates the integral vacuum pump which removes the
air from the chamber ensuring perfect contact between artwork and material
to be exposed. Only when a vacuum has been achieved will the tubes
activate and the exposure commence. When completed the vacuum pump is
turned off and a valve automatically releases the vacuum allowing the lid
to be raised. All units come complete with an IEC socket and moulded
13 amp plug.
We offer three models in the
AY range (with vacuum) which are:- AY315, AY321 and AY360.
| Model |
Working Area* |
Timer |
UV Output |
Dimensions |
Weight |
| AY315 |
13" x 14" 330 x 355mm |
0 - 999 Seconds |
6 x 15W |
550 x 485 x 170mm |
16.0 kg |
| AY321 |
13.8" x 21" 350 x 535mm |
0 - 999 Seconds |
6 x 20W
(3.5-4.5 mW/cm²) |
720 x 580 x 170mm |
22.0 kg |
| AY360 |
22.6" x 26.8" 575 x 680mm |
0 - 999 Seconds |
10 x 20W
(3.5-4.5 mW/cm²) |
765 x 730 x 178mm |
34.0 kg |
* vacuum pip is 25mm diagonally in from
top left corner of the exposure area.
